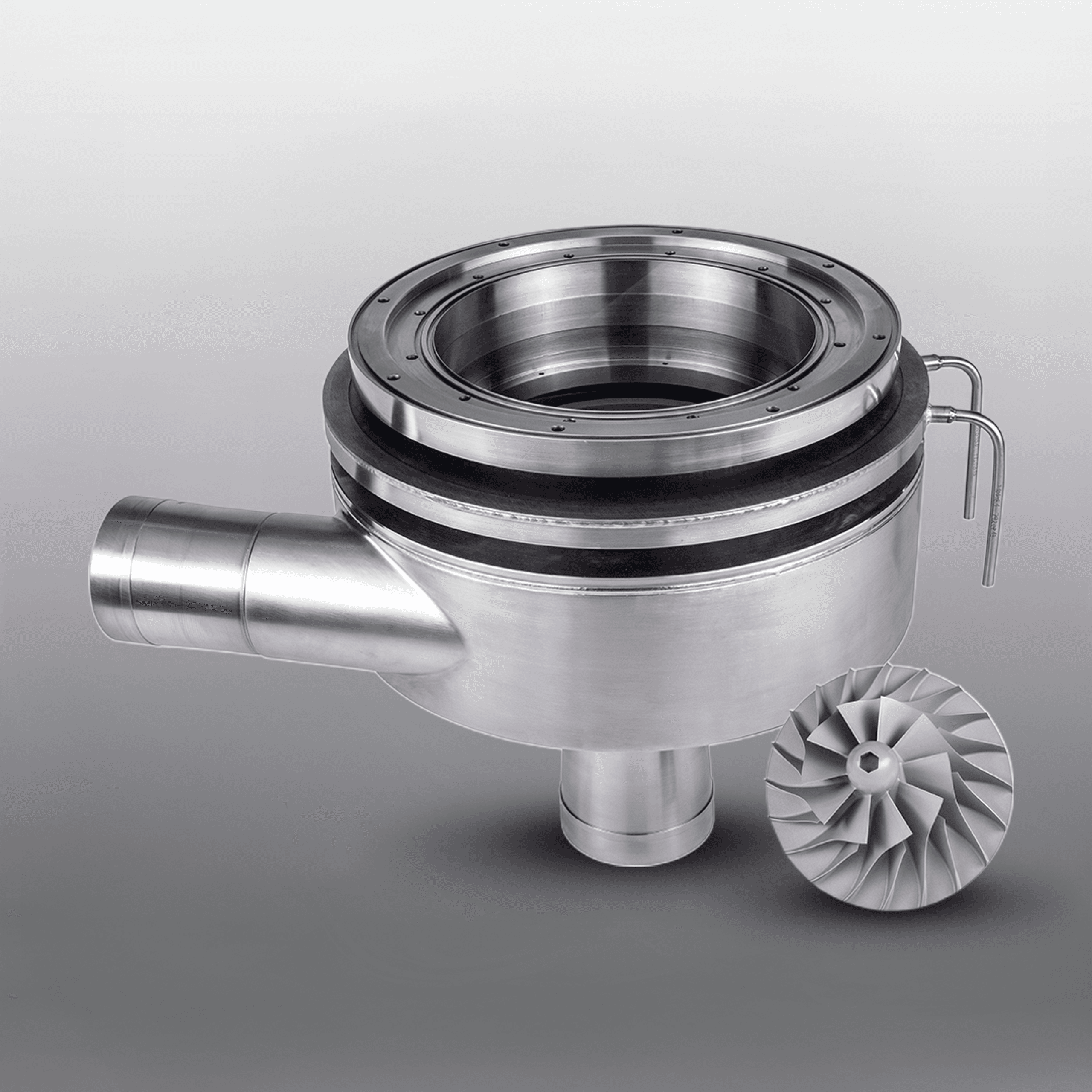

Cryogenic Compressors
Cryogenic Compressors for Technical Gases
PBS cryogenic compressors are designed for the compression of gases such as helium, nitrogen, and argon prior to their liquefaction in scientific and industrial applications. The modular design allows key parameters — pressure, flow rate, and number of stages — to be tailored to specific customer requirements. Multi-stage configurations can be equipped with intercoolers to enhance efficiency, while the use of standardized components ensures fast production, easy maintenance, and reliable service support.
High Efficiency
Long Service Life
Drive Unit
Compact Design
Modular design
Compressor Variants
PBS offers cryogenic compressors in four standard size series, equipped with electric drives according to customer specifications.
Technical Parameters of cryogenic compressors
Name
Metric units
Imperial units
Volumetric flow rate
10–115 g/s
0.022 – 0.254 lb/s
Impeller diameter
40–280 mm
1.6 – 11.0 in
Min. inlet pres
0.001 MPa
0.001 MPa
Min. inlet temperature
4 K
4 K
Max. revolutions per minute
90 000 min-1
90 000 min-1
Volumetric flow rate
Metric units
10–115 g/s
Imperial units
0.022 – 0.254 lb/s
Impeller diameter
Metric units
40–280 mm
Imperial units
1.6 – 11.0 in
Min. inlet pres
Metric units
0.001 MPa
Imperial units
0.001 MPa
Min. inlet temperature
Metric units
4 K
Imperial units
4 K
Max. revolutions per minute
Metric units
90 000 min-1
Imperial units
90 000 min-1
Technical parameters of Cryogenic Drive Unit
Name
Metric units
Imperial units
Power output
7 KW
7 KW
Max. RPM
70,000 min-1
70,000 min-1
Power output
Metric units
7 KW
Imperial units
7 KW
Max. RPM
Metric units
70,000 min-1
Imperial units
70,000 min-1
Services and Support
Technical consulting and system design
- Consultation of operational requirements and specifications
- Cooperation in the design of cryogenic circuit
- Selection of a suitable turbine type and parameters
- Optimization of turbine integration into the customer’s thermodynamic cycle
Development and customization of equipment
- Modifications of design and operating parameters according to customer’s requirements
- Engineering support for integration into the customer’s system
Installation and commissioning
- Installation of equipment at customer’s site and start of operation
- On-site training of operators and technical personnel
Manufacturing and testing
- Complete equipment manufacturing including final assembly
- Testing of turbines at nominal speeds and temperatures
- Customer participation in FAT (Factory Acceptance Test) directly at the PBS test facility
- Verification of performance and functionality before shipment
- Compact design and easy integration into customer systems
Long-term service and support
- Supply of spare parts and regular operational inspections
- Overhauls after long-term operation
- Modernization and upgrade of components
Remote diagnostics and optimization
- Online technical support and consultations
- Assistance with setting and optimizing operating parameters
